Work in reversible and irreversible changes

The same expansion can do very different amounts of work. Against a constant pressure, w = -p_ext ΔV. More stages give more work, and the reversible path gives the most. In compression the reversible path needs the least. An adiabatic change has q = 0, so ΔU = w, and ΔH = ΔU + Δn_g RT links the two for reactions.

This is the first lesson of Chemical Thermodynamics: Numerical Practice, free for everyone to read.

The sign of work

In chemistry, $w$ is the work done on the system. When a gas expands, it pushes the surroundings back and does work on them, so $w$ is negative. When a gas is compressed, the surroundings do work on it, so $w$ is positive.

Work is not a state function. It depends on the path. That is the whole point of this lesson.

One stage against a constant pressure

If the gas pushes against a constant outside pressure $p_{\text{ext}}$ , the work is

\displaystyle w = -p_{\text{ext}}\,\Delta V

A handy conversion: $1\ \text{L bar} = 100\ \text{J}$ .

Worked example. $1.00\ \text{mol}$ of an ideal gas sits at $300\ \text{K}$ in $6.00\ \text{L}$ . It expands at constant temperature to $24.0\ \text{L}$ .

The pressures. $p = \dfrac{nRT}{V}$ with $R = 0.08314\ \text{L bar K}^{-1}\text{mol}^{-1}$ . At the start, $p_1 = 4.157\ \text{bar}$ . At the end, $p_2 = 1.039\ \text{bar}$ .
One stage. Drop the outside pressure at once to $1.039\ \text{bar}$ , and let the gas push against it all the way. $w = -1.039 \times 18.0 = -18.71\ \text{L bar} = -1871\ \text{J}$ .

If the outside pressure were zero, the gas would expand into a vacuum. Then $w = 0$ . This is called a free expansion.

Two stages do more

Now expand in two steps. First, let the gas push against $2.079\ \text{bar}$ from $6.00\ \text{L}$ to $12.0\ \text{L}$ . Then let it push against $1.039\ \text{bar}$ up to $24.0\ \text{L}$ .

Stage 1. $-2.079 \times 6.00 = -12.47\ \text{L bar}$ .
Stage 2. $-1.039 \times 12.0 = -12.47\ \text{L bar}$ .
Total. $-24.94\ \text{L bar} = -2494\ \text{J}$ .

The gas did more work, because for the first half it pushed against a higher pressure.

The reversible path does the most

Make the stages smaller and smaller. In the limit, the outside pressure stays only a tiny bit below the gas pressure at every moment. This is the reversible path. Its work is the whole area under the isotherm:

\displaystyle w_{\text{rev}} = -nRT\ln\dfrac{V_2}{V_1} = -2.303\,nRT\log\dfrac{V_2}{V_1}

For our gas: $w_{\text{rev}} = -1.00 \times 8.314 \times 300 \times \ln 4 = -3458\ \text{J}$ .

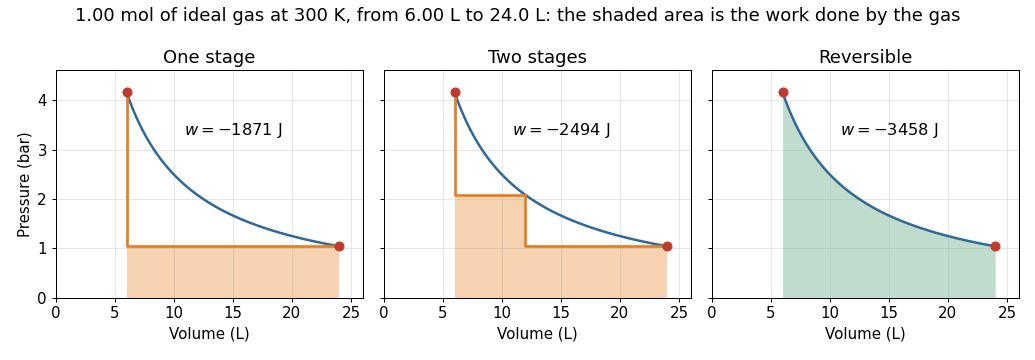

Three pressure against volume graphs, side by side, for 1.00 mol of ideal gas at 300 K expanding from 6.00 L to 24.0 L. Each shows the same blue isotherm falling from 4.16 bar to 1.04 bar. In the first, one step drops straight to 1.04 bar and runs across: the orange rectangle under it is the work, w = -1871 J. In the second, two steps, at 2.08 bar to 12.0 L and then at 1.04 bar, shade a larger area: w = -2494 J. In the third, the whole area under the curve is shaded green: the reversible work, w = -3458 J, the largest of the three.

On a graph of pressure against volume, the work done by the gas is the area under the path it pushes against. One stage covers a rectangle. Two stages cover more. The reversible path covers everything under the curve.

Compression turns the rule around

Now push the gas back from $24.0\ \text{L}$ to $6.00\ \text{L}$ at $300\ \text{K}$ .

In one stage, the outside pressure must be at least the final pressure, $4.157\ \text{bar}$ , from the start. $w = -4.157 \times (6.00 - 24.0) = +74.83\ \text{L bar} = +7483\ \text{J}$ .
Reversibly, $w_{\text{rev}} = +3458\ \text{J}$ .

So for an expansion, the reversible path gives the most work out. For a compression, it needs the least work in.

Isothermal changes of an ideal gas

The internal energy of an ideal gas depends only on its temperature. At constant temperature, $\Delta U = 0$ by every path. The first law then gives $q = -w$ .

In the reversible expansion above, the gas took in $q = +3458\ \text{J}$ of heat and did exactly that much work.

Adiabatic changes in outline

An adiabatic change lets no heat in or out: $q = 0$ . The first law then gives

\displaystyle \Delta U = w

When a gas expands adiabatically, it does work, so $w < 0$ . Its internal energy falls, and so does its temperature. That is why air cools as it rises and expands.

For an ideal gas, $\Delta U = nC_V\Delta T$ . A monatomic gas has $C_V = \dfrac{3}{2}R = 12.47\ \text{J K}^{-1}\text{mol}^{-1}$ .

Worked example. $2.00\ \text{mol}$ of a monatomic ideal gas expands adiabatically and does $1.20\ \text{kJ}$ of work. By how much does it cool?

The first law. $w = -1200\ \text{J}$ , so $\Delta U = -1200\ \text{J}$ .
The temperature. $\Delta T = \dfrac{\Delta U}{nC_V} = \dfrac{-1200}{2.00 \times 12.47} = -48.1\ \text{K}$ .

A free expansion into a vacuum is a special case. Then $q = 0$ and $w = 0$ , so $\Delta U = 0$ and an ideal gas keeps its temperature.

Delta H and Delta U for a reaction

A bomb calorimeter keeps the volume fixed, so it measures $\Delta U$ . Most tables list $\Delta H$ , the heat at constant pressure. For a reaction of ideal gases:

\displaystyle \Delta H = \Delta U + \Delta n_g RT

Here $\Delta n_g$ is the moles of gaseous products minus the moles of gaseous reactants. Solids and liquids do not count.

Worked example. Propane burns in a bomb at $298\ \text{K}$ with $\Delta U = -2213\ \text{kJ mol}^{-1}$ :

\displaystyle \text{C}_3\text{H}_8(\text{g}) + 5\,\text{O}_2(\text{g}) \rightarrow 3\,\text{CO}_2(\text{g}) + 4\,\text{H}_2\text{O}(\text{l})

Count the gas. $\Delta n_g = 3 - (1 + 5) = -3$ . The water is liquid.
$RT$ in kilojoules. $8.314 \times 298 \div 1000 = 2.478\ \text{kJ mol}^{-1}$ .
Add. $\Delta H = -2213 + (-3)(2.478) = -2220\ \text{kJ mol}^{-1}$ .

Try it in Python

The program expands the same gas in $1$ , $2$ , $4$ , $10$ and $100$ stages, and compares each with the reversible work. Each stage ends at a volume a fixed factor larger than the last.

Common mistakes

Forgetting the sign. Expansion makes $w$ negative; compression makes it positive.
Using the gas pressure in $w = -p_{\text{ext}}\Delta V$ . It is the outside pressure that counts.
Mixing $\ln$ and $\log$ . $\ln x = 2.303\log x$ .
Leaving $RT$ in joules when $\Delta U$ is in kilojoules. Divide by $1000$ .
Counting liquids in $\Delta n_g$ . Only gases count.
Thinking reversible means fast. A reversible change is infinitely slow, through states that are always at equilibrium.

Remember these

One stage: $w = -p_{\text{ext}}\Delta V$ , with $1\ \text{L bar} = 100\ \text{J}$ . A free expansion has $w = 0$ .
Reversible isothermal: $w = -nRT\ln\dfrac{V_2}{V_1}$ .
Expansion: the reversible path gives the most work out. Compression: it needs the least work in.
Isothermal ideal gas: $\Delta U = 0$ , so $q = -w$ .
Adiabatic: $q = 0$ , $\Delta U = w$ ; an expanding gas cools.
$\Delta H = \Delta U + \Delta n_g RT$ , counting gases only.

Check yourself

Try each one on your own first. If you are stuck, open a hint. Then check with Show the answer.

A gas expands from $2.0\ \text{L}$ to $7.0\ \text{L}$ against a constant outside pressure of $3.0\ \text{bar}$ . What is $w$ ?

Which needs less work to compress a gas from $10\ \text{L}$ to $5\ \text{L}$ at constant temperature: one stage, or a reversible path?

For $\text{H}_2(\text{g}) + \text{Cl}_2(\text{g}) \rightarrow 2\,\text{HCl}(\text{g})$ , how do $\Delta H$ and $\Delta U$ compare?

A gas expands adiabatically into a vacuum. What are $q$ , $w$ and $\Delta U$ ?
